voyah dreamer phev

$ 40,613 – $ 50,703

voyah Dreamer PHEV
2024 plug-in hybrid 1.5T 236km ultra-long battery life premium version
2024 plug-in hybrid 1.5T 236km ultra-long battery life excellent version
2024 plug-in hybrid 1.5T 236km ultra-long battery life flagship version

Basic parameters
Manufacturer’s guide price 369,900 339,900 419,900
Manufacturer Lantu Automobile Lantu Automobile Lantu Automobile
time to market 2023-10-12 2023-10-12 2023-10-12
level Large MPV Large MPV Large MPV
Body structure 5-door, 7-seater MPV 5-door, 7-seater MPV 5-door, 7-seater MPV
Energy type plug-in hybrid plug-in hybrid plug-in hybrid
engine 1.5T 149.6 horsepower L4 1.5T 149.6 horsepower L4 1.5T 149.6 horsepower L4
Motor[Ps] 421 421 421
gearbox 1st gear fixed gear ratio 1st gear fixed gear ratio 1st gear fixed gear ratio
Length*width*height[mm] 5315*1985*1820 5315*1985*1820 5315*1985*1800
CLTC comprehensive fuel consumption [L/100km] – – –
WLTC comprehensive fuel consumption [L/100km] 0.65 0.65 0.65
NEDC comprehensive fuel consumption [L/100km] – – –
Fuel consumption in low power state [L/100km] 5.36 5.36 5.36
CLTC pure electric range [km] 236 236 236
WLTC pure electric range [km] – – –
NEDC pure electric range [km] – – –
Official 0-50km/h acceleration [s]
Official 0-100km/h acceleration [s] 5.9 5.9 5.9
Maximum speed [km/h] 203 203 203
Environmental protection standards National VI National VI National VI
Vehicle warranty 6 years or 150,000 kilometers 6 years or 150,000 kilometers 6 years or 150,000 kilometers
First owner warranty policy – – Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official)
Exterior color
interior color

Body
Length[mm] 5315 5315 5315
Width[mm] 1985 1985 1985
Height[mm] 1820 1820 1800
Wheelbase [mm] 3200 3200 3200
Front wheelbase [mm] 1705 1705 1705
Rear wheelbase [mm] 1708 1708 1708
Minimum ground clearance without load [mm] – – –
Minimum turning radius [m] – – –
Number of doors 5 5 5
number of seats 7 7 7
Approach angle [°] 14 14 13
Departure angle[°] 17 17 16
Passage angle [°] – – –
Minimum ground clearance with full load [mm] 150 150 133
Drag coefficient [Cd] – – –
Car door opening method Swing door + sliding door Swing door + sliding door Swing door + sliding door
Fuel tank volume [L] 51 51 51
Front trunk volume [L] – – –
Trunk volume [L] 427-2680 427-2680 427-2680
Curb weight [kg] 2590 2590 2590
Full load mass [kg] 3125 3125 3125

engine
engine model C15TDE C15TDE C15TDE
Displacement [mL] 1475 1475 1475
Displacement[L] 1.5 1.5 1.5
Cylinder arrangement L L L
Intake form turbocharging turbocharging turbocharging
Number of cylinders [number] 4 4 4
Number of valves per cylinder [number] 4 4 4
Engine layout horizontal horizontal horizontal
Compression ratio – – –
Air Supply DOHC DOHC DOHC
Maximum power [kW] 110 110 110
Maximum horsepower[Ps] 149.6 149.6 149.6
Maximum power speed [rpm] 4500 4500 4500
Maximum torque [N·m] 220 220 220
Maximum torque speed [rpm] 2000-4500 2000-4500 2000-4500
Maximum net power [kW] 105 105 105
Engine specific technology – – –
fuel grade No. 95 No. 95 No. 95
Fuel supply method direct injection direct injection direct injection
Cylinder head material Aluminum alloy Aluminum alloy Aluminum alloy
Cylinder material Aluminum alloy Aluminum alloy Aluminum alloy

electric motor
Motor brand Zhixin Technology Zhixin Technology Zhixin Technology
Motor model TZ236XY150/TZ200XSP08 TZ236XY150/TZ200XSP08 TZ236XY150/TZ200XSP08
Number of drive motors Dual motor Dual motor Dual motor
Motor layout Front + rear Front + rear Front + rear
Motor type Permanent magnet synchronization Permanent magnet synchronization Permanent magnet synchronization
Total motor power [kW] 310 310 310
Total motor horsepower [Ps] 421 421 421
Motor total torque [N·m] 620 620 620
Maximum power of front electric motor [kW] 150 150 150
Maximum torque of front electric motor [N·m] 310 310 310
Maximum power of rear electric motor [kW] 160 160 160
Maximum torque of rear electric motor [N·m] 310 310 310
System comprehensive power [kW] 420 420 420
System comprehensive horsepower [Ps] 571 571 571
System comprehensive torque [N·m] 840 840 840

Battery
Battery Type Nickel cobalt manganese battery Nickel cobalt manganese battery Nickel cobalt manganese battery
Battery brand hive energy hive energy hive energy
Battery temperature management ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling
CLTC comprehensive range [km] 1231 1231 1231
Battery power [kWh] 43 43 43
Battery energy density [Wh/kg] – – –
Electricity consumption per 100 kilometers [kWh/100km] – – –
vehicle charging port ●Slow charging port ●Fast charging port ●Slow charging port ●Fast charging port ●Slow charging port ●Fast charging port
Slow charging port location ●Right rear side of car ●Right rear side of car ●Right rear side of car
Fast charging port location ●Right rear side of car ●Right rear side of car ●Right rear side of car
High voltage fast charging platform ●400V platform ●400V platform ●400V platform
Fast charging power [kW] 80 80 80
Fast charging time[min] 30 30 30
Fast charging time[h] 0.5 0.5 0.5
Fast charging capacity [%] 20-80 20-80 20-80
Slow charging power [kW] 6.6 6.6 6.6
Slow charging time[h] 8.4 8.4 8.4
Slow charging capacity [%] 0-100 0-100 0-100
Vehicle battery swap – – –
Home charging pile ● ● ●
Car charging gun ● ● ●
External discharge function ● ● ●
External discharge power ●3.3kW ●3.3kW ●3.3kW
Battery pack warranty 8 years or 160,000 kilometers 8 years or 160,000 kilometers 8 years or 160,000 kilometers
First owner battery pack warranty Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official) Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official) Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official)

gearbox
Gearbox type Fixed gear ratio Fixed gear ratio Fixed gear ratio
Gearbox description Electric vehicle single speed gearbox Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Number of gears 1 1 1

chassis steering
Drive form Front four-wheel drive Front four-wheel drive Front four-wheel drive
four-wheel drive Electric four-wheel drive Electric four-wheel drive Electric four-wheel drive
Center differential structure – – –
Front suspension type Double wishbone independent suspension Double wishbone independent suspension Double wishbone independent suspension
rear suspension type Five-link independent suspension Five-link independent suspension Five-link independent suspension
Assist type electric assist electric assist electric assist
Adjustable suspension features – – ●Height adjustment ●Hard and soft adjustment
Adjustable suspension types – – ●Air suspension
Body structure Load-bearing Load-bearing Load-bearing
limited slip differential – – –
Differential lock – – –
Maximum wading depth[mm] – – –

wheel brake
Front brake type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type
rear brake type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type
Parking brake type Electronic parking Electronic parking Electronic parking
Front tire specifications ●255/50 R20 ●255/50 R20 ●255/50 R20
Rear tire specifications ●255/50 R20 ●255/50 R20 ●255/50 R20
Spare tire ●Tire repair tools only ●Tire repair tools only ●Tire repair tools only
Spare tire placement – – –

active safety
ABS anti-lock ● ● ●
Braking force distribution (EBD/CBC, etc.) ● ● ●
Brake assist (BA/EBA/BAS, etc.) ● ● ●
Traction control (ASR/TCS/TRC, etc.) ● ● ●
Body stability control (ESP/DSC/VSC, etc.) ● ● ●
Tire pressure monitoring ●Tire pressure display ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●First two rows ●First two rows ●First two rows
In-car biometric monitoring – – –

passive safety
Main driver airbag ● ● ●
Passenger airbag ● ● ●
First row side airbag ● ● ●
Second row side airbags – – –
side curtain airbags ● ● ●
knee air bag – – –
Passenger seat cushion airbag – – –
Rear seat belt airbag – – –
Rear seat anti-skid airbags – – –
center airbag – – –
Second row forward airbags – – –
child seat interface ● ● ●
passive pedestrian protection – – –
Run-flat tires – – –

Auxiliary/control configuration
front parking radar ● ● ●
Rear parking radar ● ● ●
Reverse side warning system ● – ●
Door opening collision warning ● – ●
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image
Chassis perspective ● ● ●
cruise system ●Full-speed adaptive cruise ●Cruise speed ●Full-speed adaptive cruise
Driving mode selection ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized
Fatigue reminder ● ● ●
automatic parking ● – ●
remote control parking ● – ●
remote summoning ● ● ●
Engine start and stop ● ● ●
automatic parking ● ● ●
Hill assist ● ● ●
steep descent ● ● ●
night vision system – – –
variable steering ratio – – –
Integral active steering system – – –
Wading sensor system – – –
low speed four wheel drive ● ● ●
creep mode – – –
tank turns – – –

Assisted driving functions
Anti-rollover system – – –
Parallel assistance (BSM/BSD) ● – ●
Lane Departure Warning (LDWS) ● – ●
Lane Keeping (LKAS) ● – ●
Lane centering ● – ●
Road traffic sign recognition ● – ●
forward collision warning ● – ●
rear collision warning ● – ●
Active braking ● – ●
Automatic lane change assist ● – ●
Automatic ramp exit/entry – – –
Reverse tracking – – –
High-speed assisted driving – – –
Urban assisted driving – – –

Assisted driving hardware
Driving assistance level ●L2 – ●L2
Assisted driving system – – –
Assisted driving chip – – –
Chip computing power – – –
Environment aware camera ●1 piece – ●1 piece
Environment sensing camera pixels [10,000] – – –
Front sensing camera type ●monocular – ●monocular
Front sensing camera pixels [10,000] – – –
surround camera ●4 pieces ●4 pieces ●4 pieces
Surround camera pixels [10,000] – – –
car camera ●1 piece ●1 piece ●1 piece
ultrasonic radar ●First 6/Last 6 ●Front 4/Last 4 ●First 6/Last 6
millimeter wave radar ●5 pieces – ●5 pieces
lidar – – –

External configuration
Skylight type ●Segmented electric sunroof ●Segmented electric sunroof ●Segmented electric sunroof
Light-sensing awning – – –
Sport appearance package – – –
Electric spoiler – – –
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Electric suction door – – –
Automatic opening and closing of car doors – – –
Frameless door – – –
sliding door ●Bilateral electric ●Bilateral electric ●Bilateral electric
roof rack – – –
Key type ●Remote key ●Bluetooth key ●Remote key ●Bluetooth key ●Remote key ●Bluetooth key
Keyless start ● ● ●
keyless entry ●The whole car ●The whole car ●The whole car
Hidden electric door handle – – –
Active closing air intake grille – – –
Electric tailgate ● ● ●
Tailgate position memory ● ● ●
Induction tailgate – – –
Tailgate glass opens independently – – –
car side pedals – – –
Low speed driving warning sound ● ● ●
Sentinel (clairvoyance) mode ● ● ●
tow hook ● ● ●
Trailer power outlet – – –
Induction tailgate

Internal configuration
Steering wheel material ●Leather ●Leather ●Leather
Multifunction steering wheel ● ● ●
Shift pattern Electronic gear shift Electronic gear shift Electronic gear shift
steering wheel adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment
Steering wheel heating – – –
Trip computer display ●Color ●Color ●Color
Full LCD instrument panel ● ● ●
Instrument screen size ●12.3 ●12.3 ●12.3
Instrument screen material – – –
Instrument screen resolution [px] – – –
Instrument screen pixel density [PPI] – – –
HUD heads up display – – –
Built-in driving recorder ● ● ●
Mobile phone wireless charging ●First row ●First row ●First row
Maximum wireless charging power of mobile phones [W] ●50 ●50 ●50
steering wheel gear shift – – –
ETC device – – –
Active noise reduction ● ● ●
Single pedal mode ● ● ●
Electrically adjustable pedals – – –

Seat configuration
seat material ●Imitation leather ●Imitation leather ●Imitation leather
Sports style seats – – –
Electric driver’s seat adjustment ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory
Passenger seat electric adjustment ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory
Driver’s seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way)

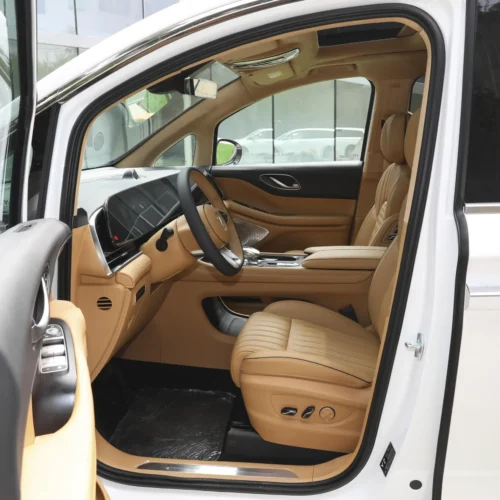

Passenger seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way)
First row seat functions ●Heating ●Ventilation ●Massage – ●Heating ●Ventilation ●Massage
Boss button ● ● ●

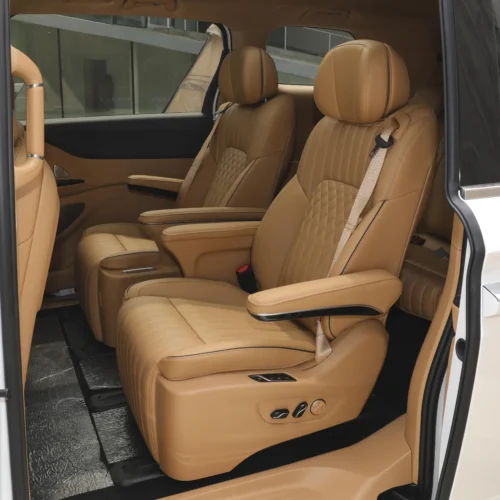

Electrically adjustable second row seats ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory
Second row seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Waist adjustment (4-way) ●Leg rest adjustment
Second row seat functions ●Heating ●Ventilation ●Massage ●Heating ●Ventilation ●Massage ●Heating ●Ventilation ●Massage
Electrically adjustable third row seats ●Electric adjustment ●Electric adjustment ●Electric adjustment
Third row seat adjustment method ●Backrest adjustment ●Backrest adjustment ●Backrest adjustment
Third row seat functions – – –
Electric footrest – – –
Zero Gravity Seat Function – – –
center armrest ●First row ●Second row ●First row ●Second row ●First row ●Second row
Seat layout ●2+2+3 ●2+2+3 ●2+2+3
Rear seat folding method ●Inverted proportions ●Inverted proportions ●Inverted proportions
Rear cup holder ●Second row ●Third row ●Second row ●Third row ●Second row ●Third row
Electrically reclining rear seats – – –
Rear folding table ●Second row – ●Second row
Heated/cooled cup holder – – –

Multimedia configuration

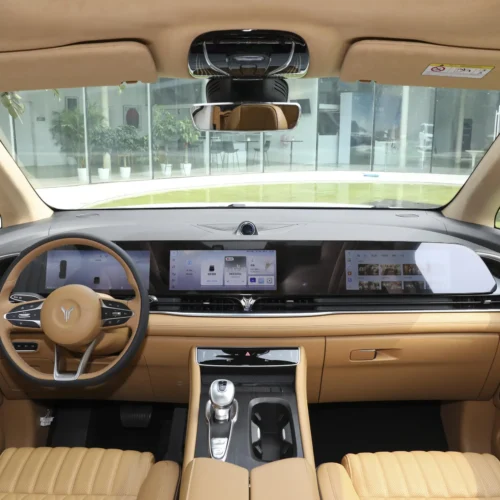

Central control color screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●12.3 ●12.3 ●12.3
Screen size under central control
Central control screen material – – –
Central control screen resolution [px] ●1920 x 720 ●1920 x 720 ●1920 x 720
Central control screen pixel density [PPI] ●167 ●167 ●167
Passenger screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Passenger screen size ●12.3 ●12.3 ●12.3
Vehicle system Windlink Windlink Windlink
Passenger screen material – – –
Passenger screen pixel density [PPI] ●167 ●167 ●167
Car chip Qualcomm Snapdragon 8155 Qualcomm Snapdragon 8155 Qualcomm Snapdragon 8155
Vehicle system memory (GB) – – –
Vehicle system storage (GB) – – –
satellite navigation system
Navigation traffic information display
AR real-life navigation – – –
Car navigation map ●Baidu ●Baidu ●Baidu
HD map – – –
V2X communication – – –
roadside assistance call ● ● ●
Vehicle-to-machine network ●5G ●5G ●5G
Car WiFi function ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot
OTA upgrade ●Vehicle OTA ●Vehicle OTA ●Vehicle OTA
Car APP application market ● ● ●
Voice recognition control function ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Sunroof ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Sunroof ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Sunroof
Voice zone wake-up ●First row ●Second row ●First row ●First row ●Second row
Voice wake-up-free ● ● ●
Speech continuous recognition ● ● ●
Mobile phone interconnection/mapping ●Support HiCar ●Support HiCar ●Support HiCar
Voice assistant wake word ●Hi, Lantu ●Hi, Lantu ●Hi, Lantu
gesture control ● ● ●
face recognition ● ● ●
Remote control function ●Door control ●Vehicle start ●Air conditioning control ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Schedule maintenance/repair ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Door control ●Vehicle start ●Air conditioning control ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Schedule maintenance/repair ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Door control ●Vehicle start ●Air conditioning control ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Schedule maintenance/repair ●Car owner service (find charging piles, gas stations, parking lots, etc.)
Car CD/DVD – – –
Split screen function – – –
Multimedia/charging interface ●USB●Type-C ●USB●Type-C ●USB●Type-C
Bluetooth/car phone ● ● ●
Number of USB/Type-C interfaces ●2 people in the front row/6 people in the back row ●2 people in the front row/6 people in the back row ●2 people in the front row/6 people in the back row
In-car entertainment functions ●Korean songs ●Games ●Korean songs ●Games ●Korean songs ●Games
simulated sound – – –
Rear seat control multimedia ○ – ○
audio brand ●Dynaudio Dynaudio – ●Dynaudio Dynaudio
Luggage compartment power interface ●12V ●12V ●12V
Number of speakers ●10 ●8 ●10
Rear multimedia screen
Cockpit 220V/230V power supply – – –

Lighting configuration
Low beam light source ●LED ●LED ●LED
high beam light source
Lighting features
LED daytime running lights
Headlight function
Turn assist light
Front fog lights
Headlight cleaning device
Car interior ambient light
Rear multimedia screen size ○15.6 – ○15.6
Rear multimedia screen material ○LCD – ○LCD
Rear multimedia screen resolution [px] ○1920×1080 – ○1920×1080
Rear multimedia screen pixel density [PPI] – – –

glass/rear view mirror
First row electric windows
Second row power windows
One-click lifting and lowering of windows
Window anti-pinch function
Multilayer soundproof glass
Exterior rearview mirror function
Interior rearview mirror function
Rear side privacy glass
Rear side sunshades
Rear windshield sunshade
Car vanity mirror
Sensing wiper function
rear wiper
Heated water nozzle

Air conditioning/refrigeration
First row air conditioner
Second row air conditioner
Third row air conditioner
heat pump air conditioner
air quality monitoring
In-car PM2.5 filter device
Car air purifier
negative ion generator
Fragrance system
car refrigerator

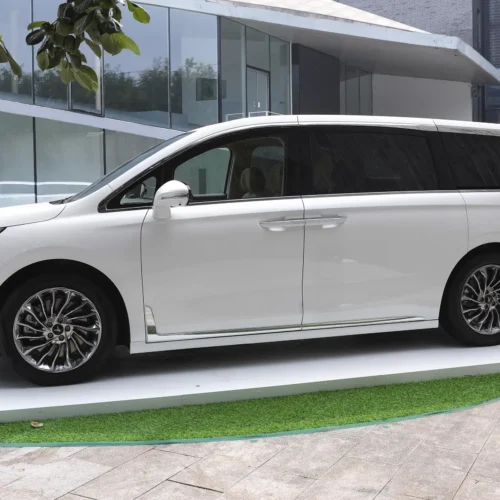

body type

mpv
body type level

middle and large
brand

voyah
fuel type

plug-in hybrid

相关产品

Contact
  • +86 15102761875
  • chris@cnautozone.cn
  • No. 138, Guangma Avenue, Mayong Town, Dongguan City, Guangdong Province
  • No. 8-1, Shinan Avenue, Huangge Town, Nansha District, Guangzhou City, Guangdong Province
Company Links
send a message
Location
滚动至顶部
