nio et5

$ 39,112$ 46,427

NIO ET5

NIO ET5

2024 710km 100kWh
2024 model 560km 75kWh

Basic parameters

Manufacturer’s suggested price 356,000 298,000
Beijing reference price 356,000 298,000
Manufacturer NIO NIO
Availability 2024-02-22 2024-02-22
level Mid-size car Mid-size car
Body structure 5-door 5-passenger hatchback 5-door 5-passenger hatchback
Energy Type Pure Electric Pure Electric
Motor [Ps] 490 490
Gearbox 1st gear fixed gear ratio 1st gear fixed gear ratio
Length*width*height[mm] 4790*1960*1499 4790*1960*1499
CLTC pure electric range [km] 710 560
WLTC pure electric range [km]
NEDC pure electric range [km]
Official 0-50km/h acceleration [s]
Official 0-100km/h acceleration [s] 4 4
Maximum speed [km/h] 200 200
Vehicle warranty 3 years or 120,000 km 3 years or 120,000 km
First Owner Warranty Policy 6 years or 150,000 kilometers (liability exemption clause is subject to official regulations) 6 years or 150,000 kilometers (liability exemption clause is subject to official regulations)
Appearance Color
Interior Color

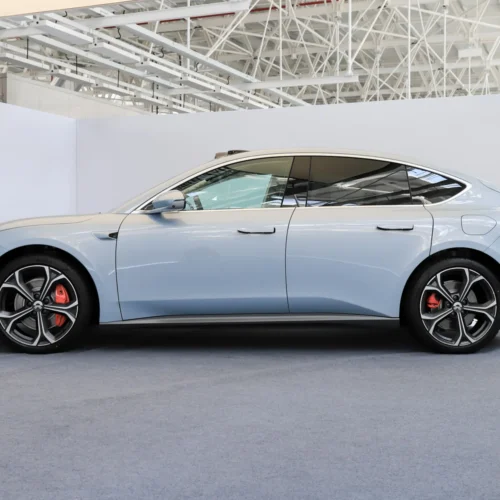

Body

Length [mm] 4790 4790
Width [mm] 1960 1960
Height [mm] 1499 1499
Wheelbase [mm] 2888 2888
Front track [mm] 1685 1685
Rear track [mm] 1685 1685
Minimum ground clearance without load [mm]
Minimum turning radius [m]
Number of doors 5 5
Seating capacity 5 5
Approach angle [°] 13 13
Departure angle [°] 14 14
Pass angle [°]
Minimum ground clearance when fully loaded [mm]
Drag coefficient [Cd] 0.24 0.24
Door opening method Swing door Swing door
Front trunk volume [L]
Trunk volume [L]
Curb weight[kg] 2185 2165
Full load mass [kg] 2690 2690

engine

Electric Motor

Motor Brand Weilai Power Weilai Power
Motor Model YS150S001/TZ210S001 YS150S001/TZ210S001
Number of drive motors Dual motors Dual motors
Motor layout Front + rear Front + rear
Motor Type Front induction asynchronous/rear permanent magnet synchronous Front induction asynchronous/rear permanent magnet synchronous
Total motor power [kW] 360 360
Total motor horsepower [Ps] 490 490
Total torque of the motor [N·m] 700 700
Maximum power of front motor [kW] 150 150
Maximum torque of front motor [N·m] 280 280
Maximum power of rear motor [kW] 210 210
Maximum torque of rear motor [N·m] 420 420

Battery

Battery Type Ternary lithium battery Ternary lithium + lithium iron phosphate
Battery brand Jiangsu Times Jiangsu Times
Battery Temperature Management ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling
Battery capacity [kWh] 100 75
Battery energy density [Wh/kg] 185.44 142.1
Power consumption per 100 km [kWh/100km] 15.1 15.3
Vehicle charging port ●Fast charging port ●Fast charging port
Slow charging port location
Fast charging port location ● Left rear side of the vehicle ● Left rear side of the vehicle
High voltage fast charging platform ●400V platform ●400V platform
Fast charging power [kW]
Fast charging time[min] 36 36
Fast charging time[h] 0.6 0.6
Fast charge capacity[%]
Slow charging power [kW]
Slow charging time[h]
Slow charging capacity[%]
Vehicle battery replacement
Home charging station
On-board charging gun
External discharge function
External discharge power 3.3kW 3.3kW
Battery Pack Warranty 8 years or 120,000 km 8 years or 120,000 km
First Owner Battery Pack Warranty 10 years unlimited mileage (liability exemption clauses are subject to official regulations) 10 years unlimited mileage (liability exemption clauses are subject to official regulations)

Gearbox

Gearbox Type Fixed gear ratio Fixed gear ratio
Gearbox Description Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Number of gears 1 1

Chassis steering

Drive type Dual motor four-wheel drive Dual motor four-wheel drive
Four-wheel drive Electric four-wheel drive Electric four-wheel drive
Central differential structure
Front suspension type Five-link independent suspension Five-link independent suspension
Rear suspension type Five-link independent suspension Five-link independent suspension
Power type Electric power assist Electric power assist
Adjustable suspension features
Adjustable suspension type
Vehicle structure Load-bearing Load-bearing
Limited slip differential
Differential lock
Maximum wading depth [mm]

Wheel brake

Front brake type ●Ventilated disc type ●Ventilated disc type
Rear brake type ●Ventilated disc type ●Ventilated disc type
Parking brake type Electronic parking brake Electronic parking brake
Front tire specifications ●245/45 R19○245/40 R20 ●245/45 R19○245/40 R20
Rear tire specifications ●245/45 R19○245/40 R20 ●245/45 R19○245/40 R20
Spare tire ●Tire repair tool only ●Tire repair tool only
Spare tire placement

Active safety

ABS anti-lock braking system
Braking force distribution (EBD/CBC, etc.)
Brake assist (BA/EBA/BAS, etc.)
Traction control (ASR/TCS/TRC, etc.)
Vehicle stability control (ESP/DSC/VSC, etc.)
Tire pressure monitoring Tire pressure display Tire pressure display
Seat belt not fastened reminder ●Full vehicle ●Full vehicle
In-car biological monitoring

Passive safety

Driver airbag
Passenger airbag
First row side airbags
Second row side airbags
Side curtain airbags
Knee airbag
Passenger seat cushion airbag
Rear seat belt airbags
Rear seat anti-slip airbags
Center airbag ●First row ●First row
Second row forward airbags
Child seat interface
Passive pedestrian protection
Run-flat tires

Assistance/Control Configuration

Front parking radar
Rear parking radar
Reverse side warning system
Door opening collision warning
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image
Chassis perspective
Cruise control system ●Full-speed adaptive cruise control ●Full-speed adaptive cruise control
Driving mode selection ●Sports●Economy●Standard/Comfort●Off-road●Snow●Custom/Personalized ●Sports●Economy●Standard/Comfort●Off-road●Snow●Custom/Personalized
Fatigue reminder
Automatic parking
Remote control parking
Remote Summon
Automatic parking
Hill start assist
Steep slope descent
Night Vision System
Variable steering ratio
Integral Active Steering
Water sensing system
Low speed four-wheel drive
Creep Mode
Tank Turn

Assisted driving function

Anti-roll system
Merge assistance (BSM/BSD)
Lane Departure Warning (LDWS)
Lane Keeping System (LKAS)
Lane centering
Road traffic sign recognition
Forward Collision Warning
Rear Collision Warning
Active braking
Automatic Lane Change Assist
Automatic ramp entry/exit
Reverse tracking
High-speed assisted driving
City Assisted Driving

Assisted driving hardware

Driver assistance level L2 L2
Driver assistance systems ●NIO Aquila Super Sensing ●NIO Aquila Super Sensing
Assisted driving chip ●4 NVIDIA Drive Orin-X ●4 NVIDIA Drive Orin-X
Chip computing power 1016 TOPS 1016 TOPS
Environmental awareness camera 7 7
Environmental perception camera pixels [million] ●800 ●800
Forward perception camera type ●Binocular ●Binocular
Front perception camera pixels [million]
Surround view camera ●4 ●4
Surround view camera pixels[10,000] ●300 ●300
In-car camera ●2 ●2
Ultrasonic radar ●Front 6/Back 6 ●Front 6/Back 6
Millimeter wave radar 5 5
LiDAR ●1 ●1

External Configuration

Skylight Type ●The panoramic sunroof cannot be opened ●The panoramic sunroof cannot be opened
Light-sensitive skylight
Sports appearance package
Electric spoiler
Rim material Aluminum alloy Aluminum alloy
Electric suction door ●Full vehicle ●Full vehicle
Automatic door opening and closing
Frameless doors
Sliding door
Roof rack
Key Type ●Remote control key●Bluetooth key●NFC/RFID key●UWB digital key ●Remote control key●Bluetooth key●NFC/RFID key●UWB digital key
Keyless start
Keyless entry ●Full vehicle ●Full vehicle
Hidden electric door handle
Active closed grille
Electric tailgate
Tailgate position memory
Sensor tailgate
Tailgate glass opens independently
Side pedals
Low speed driving warning sound
Sentinel (Clairvoyance) Mode
Trailer hook
Trailer power port
Sensor tailgate

Internal Configuration

Steering wheel material ●Imitation leather ○Genuine leather ●Imitation leather ○Genuine leather
Multi-function steering wheel
Gear shifting Electronic gear shift Electronic gear shift
Steering wheel adjustment ●Electric up and down + front and back adjustment ●Steering wheel memory ●Electric up and down + front and back adjustment ●Steering wheel memory
Steering wheel heating
Driving computer display Color Color
Full LCD instrument panel
Instrument screen size 10.2 10.2
Instrument screen material MINI LED MINI LED
Instrument screen resolution [px] 1920 x 532 1920 x 532
Instrument screen pixel density [PPI] ●196 ●196
Head-up display
Built-in driving recorder
Wireless charging for mobile phones ●First row ●First row
Maximum wireless charging power for mobile phones [W]
Steering wheel shift
ETC Device
Active Noise Cancellation
Single pedal mode
Electric adjustable pedals

Seat Configuration

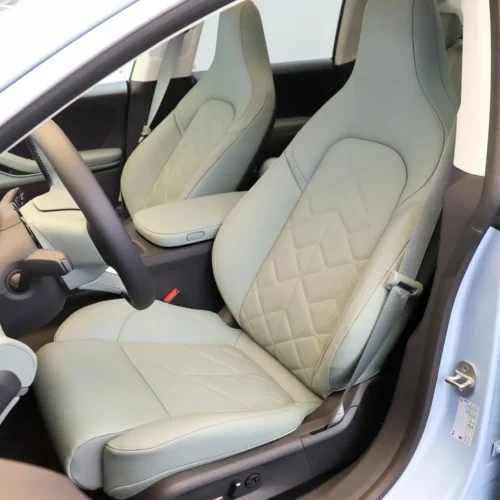

Seat Material ●Imitation leather ○Genuine leather ●Imitation leather ○Genuine leather
Sports style seats
Electric adjustment of driver’s seat ●Electric adjustment with memory ●Electric adjustment with memory
Passenger seat electric adjustment ●Electric adjustment with memory ●Electric adjustment with memory
Driver seat adjustment method ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (4 directions) ●Waist adjustment (4 directions) ○Leg rest adjustment ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (4 directions) ●Waist adjustment (4 directions) ○Leg rest adjustment
Passenger seat adjustment method ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (4 directions) ●Waist adjustment (4 directions) ○Leg rest adjustment ●Front and rear adjustment ●Backrest adjustment ●Height adjustment (4 directions) ●Waist adjustment (4 directions) ○Leg rest adjustment
First row seat functions ●Heating ○Ventilation ○Massage ●Heating ○Ventilation ○Massage
Boss Key
Second row seats electrically adjustable

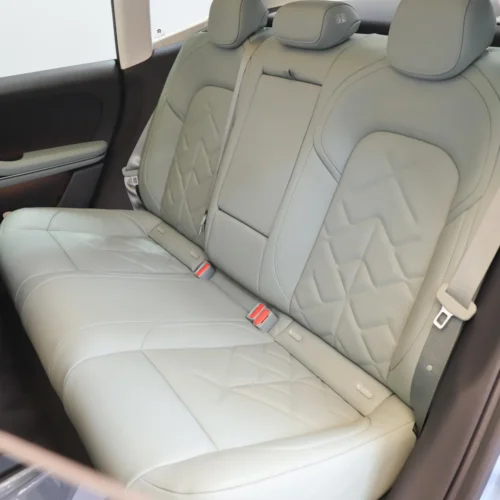

Second row seat adjustment
Second row seat functions ○Heating ○Heating
The third row of seats is electrically adjustable
Third row seat adjustment
Third row seat functions
Electric footrest
Zero Gravity Seat Features
Central armrest ●First row●Second row ●First row●Second row
Seat Layout 2+3 2+3
Rear seat folding method ●Proportional down ●Proportional down
Rear cup holder Second row Second row
Electric folding rear seats
Rear folding table
Heated/cooled cup holder

Multimedia Configuration

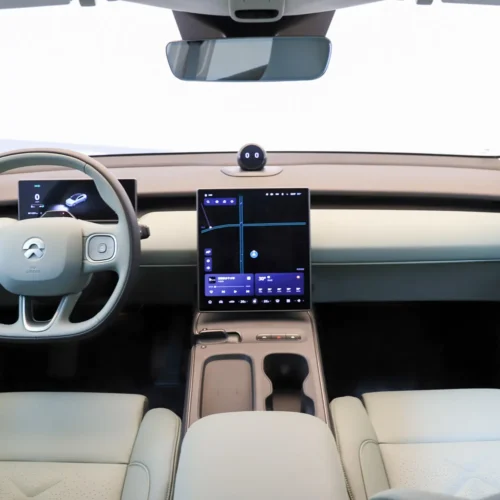

Central control color screen ●Touch screen LCD ●Touch screen LCD
Central control screen size 12.8 12.8
Center console screen size
Central control screen material AMOLED AMOLED
Central control screen resolution [px] ●1728 x 1888 ●1728 x 1888
Central control screen pixel density [PPI] ●200 ●200
Passenger screen
Passenger screen size
Car system Banyan Banyan
Passenger screen material
Passenger screen pixel density [PPI]
Car Chip Qualcomm Snapdragon 8295 Qualcomm Snapdragon 8295
Vehicle system memory (GB) ●16 ●16
Vehicle system storage (GB) ●256 ●256
Satellite navigation system
Navigation traffic information display
AR real-time navigation
Car navigation map ●AutoNavi ●AutoNavi
High-precision map
V2X Communications
Roadside assistance call
Car network 5G 5G
Car WiFi function ●WiFi connection●WiFi hotspot ●WiFi connection●WiFi hotspot
OTA Update ●Full vehicle OTA ●Full vehicle OTA
In-car APP application market
Voice recognition control function ●Multimedia system●Navigation●Telephone●Air conditioning ●Multimedia system●Navigation●Telephone●Air conditioning
Voice zone wake-up ●First row●Second row ●First row●Second row
Voice wake-up
Continuous speech recognition
Mobile phone interconnection/mapping
Voice assistant wake-up word Hi, NOMI Hi, NOMI
Gesture Control
Facial Recognition
Remote control function ● Door control ● Window control ● Vehicle start ● Air conditioning control ● Seat heating ● Charging management ● Vehicle condition inquiry/diagnosis ● Vehicle location/search ● Maintenance/repair reservation ● Owner service (find charging piles, gas stations, parking lots, etc.) ● Door control ● Window control ● Vehicle start ● Air conditioning control ● Seat heating ● Charging management ● Vehicle condition inquiry/diagnosis ● Vehicle location/search ● Maintenance/repair reservation ● Owner service (find charging piles, gas stations, parking lots, etc.)
Car CD/DVD
Split screen function
Multimedia/charging port ●USB●Type-C ●USB●Type-C
Bluetooth/Car Phone
Number of USB/Type-C ports ●2 in the front row/1 in the back row ●2 in the front row/1 in the back row
In-car entertainment features ●Karaoke●Games ●Karaoke●Games
Simulate sound waves
Rear multimedia control
Audio brand
Luggage compartment power socket
Number of speakers ●23 ●23
Rear multimedia screen
Cabin 220V/230V power supply

Lighting Configuration

Low beam light source LED LED
High beam light source LED LED
Lighting features
LED daytime running lights
Headlight function ●Height adjustment●Automatic opening and closing●Adaptive high and low beam●Delayed closing ●Height adjustment●Automatic opening and closing●Adaptive high and low beam●Delayed closing
Turn signal lamp
Front fog lights LED LED
Headlight cleaning device
Interior ambient lighting 256 colors 256 colors
Rear multimedia screen size
Rear multimedia screen material
Rear multimedia screen resolution [px]
Rear multimedia screen pixel density [PPI]

Glass/Rearview Mirror

First row electric windows
Second row power windows
One-touch window lifting ●Full vehicle ●Full vehicle
Window anti-pinch function ●Full vehicle ●Full vehicle
Multi-layer soundproof glass
Exterior mirror function ●Electric adjustment●Mirror heating●Electric folding●Mirror memory●Automatic folding when reversing●Automatic folding when locking the car●Automatic anti-glare ●Electric adjustment●Mirror heating●Electric folding●Mirror memory●Automatic folding when reversing●Automatic folding when locking the car●Automatic anti-glare
Interior rearview mirror function ●Automatic anti-glare ●Automatic anti-glare
Rear side privacy glass
Rear side sunshades
Rear windshield sunshade
Car makeup mirror ●Driver+Lighting ●Co-driver+Lighting ●Driver+Lighting ●Co-driver+Lighting
Rain sensor wiper function Rain sensor Rain sensor
Rear wiper
Heated water nozzle

Air conditioning/refrigeration

First row air conditioning ●Dual-zone automatic air conditioning ●Dual-zone automatic air conditioning
Second row air conditioning ●Air outlet ●Air outlet
Third row air conditioning
Heat pump air conditioner
Air Quality Monitoring
In-car PM2.5 filter
Car air purifier
Negative ion generator
Fragrance system
Car Refrigerator
brand

Nio

body type

sedan

fuel type

EV

body type level

middle

video

滚动至顶部
