nio ES6

$ 44,157 – $ 51,472

NIO ES6

NIO ES6
2023 model 625km 100kWh
2023 model 490km 75kWh

Basic parameters
Manufacturer’s guide price 396,000 338,000
Beijing reference price 396,000 338,000
Manufacturer NIO NIO
time to market 2023-05-24 2023-05-24
level Medium SUV Medium SUV
Body structure 5-door, 5-seater SUV 5-door, 5-seater SUV
Energy type pure electricity pure electricity
Motor[Ps] 490 490
gearbox 1st gear fixed gear ratio 1st gear fixed gear ratio
Length*width*height[mm] 4854*1995*1703 4854*1995*1703
CLTC pure electric range [km] 625 490
WLTC pure electric range [km] – –
NEDC pure electric range [km] – –
Official 0-50km/h acceleration [s]
Official 0-100km/h acceleration [s] 4.5 4.5
Maximum speed [km/h] 200 200
Vehicle warranty 3 years or 120,000 kilometers 3 years or 120,000 kilometers
First owner warranty policy 6 years or 150,000 kilometers 6 years or 150,000 kilometers
Exterior color
interior color

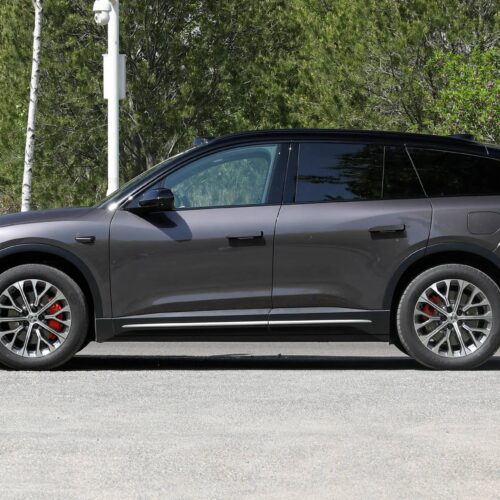

Body
Length[mm] 4854 4854
Width[mm] 1995 1995
Height[mm] 1703 1703
Wheelbase [mm] 2915 2915
Front wheelbase [mm] 1711 1711
Rear wheelbase [mm] 1711 1711
Minimum ground clearance without load [mm] – –
Minimum turning radius [m]
Number of doors 5 5
number of seats 5 5
Approach angle [°] 17 17
Departure angle [°] 20 20
Passage angle [°] – –
Minimum ground clearance with full load [mm]
Drag coefficient [Cd] 0.25 0.25
Car door opening method swing door swing door
Front trunk volume [L] – –
Trunk volume [L] 579-1430 579-1430
Curb weight [kg] 2336 2316
Full load mass [kg] 2843 2843

engine

electric motor
Motor brand
Motor model
Number of drive motors Dual motor Dual motor
Motor layout Front + rear Front + rear
Motor type Front AC asynchronous/rear permanent magnet synchronous Front AC asynchronous/rear permanent magnet synchronous
Total motor power [kW] 360 360
Total motor horsepower [Ps] 490 490
Motor total torque [N·m] 700 700
Maximum power of front electric motor [kW] 150 150
Maximum torque of front electric motor [N·m] 280 280
Maximum power of rear electric motor [kW] 210 210
Maximum torque of rear electric motor [N·m] 420 420

Battery
Battery Type Ternary lithium battery Ternary lithium + lithium iron phosphate
Battery brand Ningde Times/Jiangsu Times/China New Aviation Jiangsu Times
Battery temperature management ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling
Battery power [kWh] 100 75
Battery energy density [Wh/kg] 185.4 142.1
Electricity consumption per 100 kilometers [kWh/100km] – –
vehicle charging port ●Quick charging port ●Quick charging port
Slow charging port location – –
Fast charging port location ●Car left rear side ●Car left rear side
High voltage fast charging platform
Fast charging power [kW] – –
Fast charging time[min] – –
Fast charging time[h]
Fast charging capacity [%] – –
Slow charging power [kW] – –
Slow charging time[h] – –
Slow charging capacity [%] – –
Vehicle battery swap ● ●
Home charging pile ● ●
Car charging gun – –
External discharge function ● ●
External discharge power ●3.3kW ●3.3kW
Battery pack warranty 8 years or 120,000 kilometers 8 years or 120,000 kilometers
First owner battery pack warranty 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy) 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy)

gearbox
Gearbox type Fixed gear ratio Fixed gear ratio
Gearbox description Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Number of gears 1 1

chassis steering
Drive form Dual motor four-wheel drive Dual motor four-wheel drive
four-wheel drive Electric four-wheel drive Electric four-wheel drive
Center differential structure – –
Front suspension type Five-link independent suspension Five-link independent suspension
rear suspension type Five-link independent suspension Five-link independent suspension
Assist type electric assist electric assist
Adjustable suspension features ●Soft and hard adjustment ●Soft and hard adjustment
Adjustable suspension types – –
Body structure Load-bearing Load-bearing
limited slip differential – –
differential lock – –
Maximum wading depth[mm]

wheel brake
Front brake type ●Ventilated disc type ●Ventilated disc type
rear brake type ●Ventilated disc type ●Ventilated disc type
Parking brake type Electronic parking Electronic parking
Front tire specifications ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21
Rear tire specifications ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21
Spare tire ●Tire repair tools only ●Tire repair tools only
Spare tire placement – –

active safety
ABS anti-lock ● ●
Braking force distribution (EBD/CBC, etc.) ● ●
Brake assist (BA/EBA/BAS, etc.) ● ●
Traction control (ASR/TCS/TRC, etc.) ● ●
Body stability control (ESP/DSC/VSC, etc.) ● ●
Tire pressure monitoring ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●First row ●First row
In-car biometric monitoring

passive safety
Main driver airbag ● ●
Passenger airbag ● ●
First row side airbag ● ●
Second row side airbags – –
side curtain airbags ● ●
knee air bag – –
Passenger seat cushion airbag – –
Rear seat belt airbag – –
Rear seat anti-skid airbags – –
center airbag ●First row ●First row
Second row forward airbags – –
child seat interface ● ●
passive pedestrian protection – –
Run-flat tires – –

Auxiliary/control configuration
front parking radar ● ●
Rear parking radar ● ●
Reverse side warning system ● ●
Door opening collision warning ● ●
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image
Chassis perspective ● ●
cruise system ●Full-speed adaptive cruise ●Full-speed adaptive cruise
Driving mode selection ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized
Fatigue reminder ● ●
automatic parking ● ●
remote control parking ● ●
remote summoning ● ●
automatic parking ● ●
Hill assist ● ●
steep descent ● ●
night vision system – –
variable steering ratio – –
Integral active steering system – –
Wading sensing system – –
low speed four wheel drive – –
creep mode – –
tank turns – –

Assisted driving functions
Anti-rollover system
Parallel assistance (BSM/BSD) ● ●
Lane Departure Warning (LDWS) ● ●
Lane Keeping (LKAS) ● ●
Lane centering ● ●
Road traffic sign recognition ● ●
forward collision warning ● ●
rear collision warning ● ●
Active braking ● ●
Automatic lane change assist ● ●
Automatic ramp exit/entry ○ ○
Reverse tracking – –
High-speed assisted driving
Urban assisted driving

Assisted driving hardware
Driving assistance level ●L2 ●L2
Assisted driving system ●NIO Autonomous Driving NIO Autonomous Driving ●NIO Autonomous Driving NIO Autonomous Driving
Assisted driving chip ●4 NVIDIA Orin-X ●4 NVIDIA Orin-X
Chip computing power ●1016 TOPS ●1016 TOPS
Environment aware camera ●7 pieces ●7 pieces
Environment sensing camera pixels [10,000]
Front sensing camera type ●Binocular ●Binocular
Front sensing camera pixels [10,000]
surround camera ●4 pieces ●4 pieces
Surround camera pixels [10,000]
car camera ●2 pieces ●2 pieces
ultrasonic radar ●First 6/Last 6 ●First 6/Last 6
millimeter wave radar ●5 pieces ●5 pieces
lidar

External configuration
Skylight type ●The panoramic sunroof can be opened ●The panoramic sunroof can be opened
Light-sensing awning
Sport appearance package – –
Electric spoiler – –
Rim material ●Aluminum alloy ●Aluminum alloy
Electric suction door ●The whole car ●The whole car
Automatic opening and closing of car doors – –
Frameless door – –
sliding door – –
roof rack ● ●
Key type ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key
Keyless start ● ●
keyless entry ●The whole car ●The whole car
Hidden electric door handle ● ●
Active closing air intake grille ● ●
Electric tailgate Electric tailgate●Tailgate position memory●Induction tailgate● Electric tailgate●Tailgate position memory●Induction tailgate●
Tailgate position memory
Induction tailgate
Tailgate glass opens independently – –
car side pedals – –
Low speed driving warning sound ● ●
Sentinel (clairvoyance) mode ● ●
tow hook
Trailer power outlet
Induction tailgate

Internal configuration
Steering wheel material ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather
Multifunction steering wheel ● ●
Shift pattern Electronic gear shift Electronic gear shift
steering wheel adjustment ●Electric up and down + front and rear adjustment ●Steering wheel memory ●Electric up and down + front and rear adjustment ●Steering wheel memory
Steering wheel heating ○ ○
Trip computer display ●Color ●Color
Full LCD instrument panel ● ●
Instrument screen size ●10.2 ●10.2
Instrument screen material
Instrument screen resolution [px]
Instrument screen pixel density [PPI]
HUD heads up display ● ●
Built-in driving recorder ● ●
Mobile phone wireless charging ●First row ●First row
Maximum wireless charging power of mobile phones [W]
steering wheel gear shift – –
ETC device ● ●
Active noise reduction – –
Single pedal mode ● ●
Electrically adjustable pedals – –

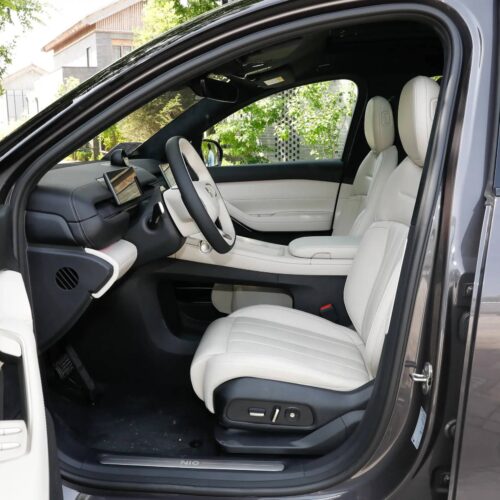

Seat configuration
seat material ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather
Sports style seats – –
Electric driver’s seat adjustment ●Electric adjustment with memory ●Electric adjustment with memory
Passenger seat electric adjustment ●Electric adjustment with memory ●Electric adjustment with memory
Driver’s seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment
Passenger seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment
First row seat functions ●Heating○Ventilation○Massage ●Heating○Ventilation○Massage
Boss button – –

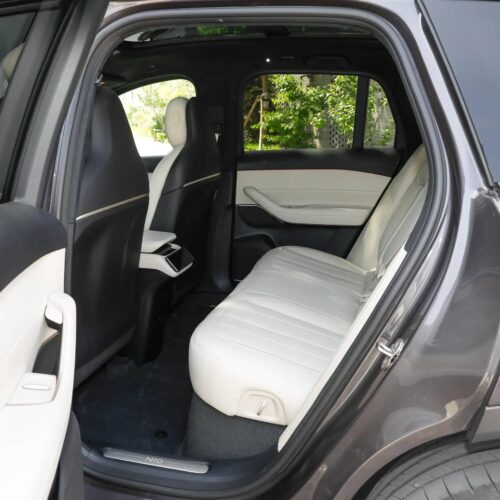

Electrically adjustable second row seats ●Electric adjustment ●Electric adjustment
Second row seat adjustment method ●Backrest adjustment ●Backrest adjustment
Second row seat functions ○Heating○Ventilation○Massage ○Heating○Ventilation○Massage
Electrically adjustable third row seats – –
Third row seat adjustment method – –
Third row seat functions – –
Electric footrest
Zero Gravity Seat Function ○Co-pilot ○Co-pilot
center armrest ●First row ●Second row ●First row ●Second row
Seat layout ●2+3 ●2+3
Rear seat folding method ●Inverted proportions ●Inverted proportions
Rear cup holder ●Second row ●Second row
Electrically reclining rear seats – –
Rear folding table – –
Heated/cooled cup holder – –

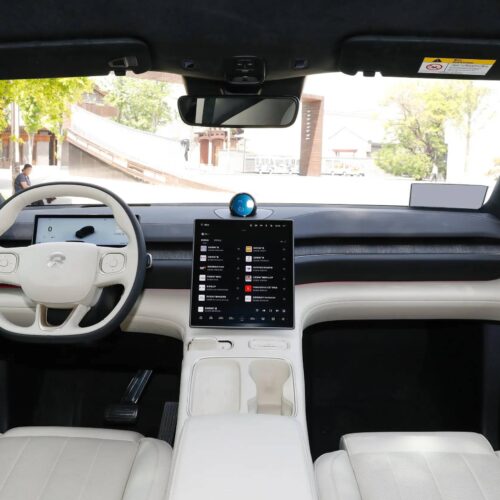

Multimedia configuration
Central control color screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●12.8 ●12.8
Screen size under central control – –
Central control screen material
Central control screen resolution [px]
Central control screen pixel density [PPI]
Passenger screen – –
Passenger screen size – –
Vehicle system Banyan tree Banyan tree
Passenger screen material
Passenger screen pixel density [PPI]
Car chip Qualcomm Snapdragon 8155 Qualcomm Snapdragon 8155
Vehicle system memory (GB)
Vehicle system storage (GB)
satellite navigation system
Navigation traffic information display
AR real-life navigation – –
Car navigation map
HD map ● ●
V2X communication ● ●
roadside assistance call ● ●
Vehicle-to-machine network ●5G ●5G
Car WiFi function ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot
OTA upgrade ●Vehicle OTA ●Vehicle OTA
Car APP application market ● ●
Voice recognition control function ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Sunroof ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Sunroof
Voice zone wake-up ●First row ●Second row ●First row ●Second row
Voice wake-up-free ● ●
Speech continuous recognition ● ●
Mobile phone interconnection/mapping – –
Voice assistant wake word ●Hi NOMI ●Hi NOMI
gesture control – –
face recognition ● ●
Remote control function ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Charging management ●Vehicle condition query/diagnosis ●Vehicle positioning/car search ●Maintenance/repair appointment ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Charging management ●Vehicle condition query/diagnosis ●Vehicle positioning/car search ●Maintenance/repair appointment ●Car owner service (find charging piles, gas stations, parking lots, etc.)
Car CD/DVD – –
Split screen function – –
Multimedia/charging interface ●USB●Type-C ●USB●Type-C
Bluetooth/car phone ● ●
Number of USB/Type-C interfaces ●3 people in the front row/1 person in the back row○3 people in the front row/6 people in the back row ●3 people in the front row/1 person in the back row○3 people in the front row/6 people in the back row
In-car entertainment functions – –
simulated sound ● ●
Rear seat control multimedia ● ●
audio brand – –
Luggage compartment power interface ●12V ●12V
Number of speakers ●23 ●23
Rear multimedia screen 1● 1●
Cockpit 220V/230V power supply – –

Lighting configuration
Low beam light source ●LED ●LED
high beam light source ●LED ●LED
Lighting features ●Geometric multi-beam ●Geometric multi-beam
LED daytime running lights ● ●
Headlight function ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown
Turn assist light ● ●
Front fog lights ●LED ●LED
Headlight cleaning device – –
Car interior ambient light ●256 colors ●256 colors
Rear multimedia screen size
Rear multimedia screen material
Rear multimedia screen resolution [px]
Rear multimedia screen pixel density [PPI]

glass/rear view mirror
First row electric windows ● ●
Second row electric windows ● ●
One-click lifting and lowering of windows ●The whole car ●The whole car
Window anti-pinch function ●The whole car ●The whole car
Multilayer soundproof glass ●The whole car ●The whole car
Exterior rearview mirror function ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle
Interior rearview mirror function ●Automatic anti-dazzle ●Automatic anti-dazzle
Rear side privacy glass ● ●
Rear side sunshades – –
Rear windshield sunshade – –
Car vanity mirror ●Main driver + lighting ●Co-pilot + lighting ●Main driver + lighting ●Co-pilot + lighting
Sensing wiper function ●Rain sensor type ●Rain sensor type
rear wiper ● ●
Heated water nozzle – –

Air conditioning/refrigeration
First row air conditioner ●Dual temperature zone automatic air conditioning ●Dual temperature zone automatic air conditioning
Second row air conditioner ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning
Third row air conditioner – –
heat pump air conditioner ● ●
air quality monitoring ● ●
In-car PM2.5 filter device ● ●
Car air purifier ● ●
negative ion generator ● ●
Fragrance system ○ ○
car refrigerator – –
brand

Nio
body type

suv
fuel type

EV
body type level

middle

Video

相关产品

Contact
  • +86 15102761875
  • chris@cnautozone.cn
  • No. 138, Guangma Avenue, Mayong Town, Dongguan City, Guangdong Province
  • No. 8-1, Shinan Avenue, Huangge Town, Nansha District, Guangzhou City, Guangdong Province
Company Links
send a message
Location
滚动至顶部
