nio ec6

$ 46,679$ 70,643

2024 model 630km 100kWh
2024 model 505km 75kWh
2023 model 630km 100kWh
2023 model 495km 75kWh

Basic parameters

Manufacturer’s guide price 416,000 358,000 416,000 358,000
Manufacturer NIO NIO NIO NIO
time to market 2024-02-22 2024-02-22 2023-09-15 2023-09-15
level Medium SUV Medium SUV Medium SUV Medium SUV
Body structure 5-door, 5-seater SUV 5-door, 5-seater SUV MPV MPV
Energy type pure electricity pure electricity pure electricity pure electricity
Motor[Ps] 490 490 490 490
gearbox 1st gear fixed gear ratio 1st gear fixed gear ratio 1st gear fixed gear ratio 1st gear fixed gear ratio
Length*width*height[mm] 4849*1995*1697 4849*1995*1697 4849*1995*1697 4849*1995*1697
CLTC pure electric range [km] 630 505 630 495
WLTC pure electric range [km]
NEDC pure electric range [km]
Official 0-50km/h acceleration [s]
Official 0-100km/h acceleration [s] 4.4 4.4 4.4 4.4
Maximum speed [km/h] 200 200 200 200
Vehicle warranty 3 years or 120,000 kilometers 3 years or 120,000 kilometers 3 years or 120,000 kilometers 3 years or 120,000 kilometers
First owner warranty policy 6 years or 150,000 kilometers (the liability exemption clause shall be subject to the official) 6 years or 150,000 kilometers (the liability exemption clause shall be subject to the official) 6 years or 150,000 kilometers (the liability exemption clause shall be subject to the official) 6 years or 150,000 kilometers (the liability exemption clause shall be subject to the official)
Exterior color
interior color

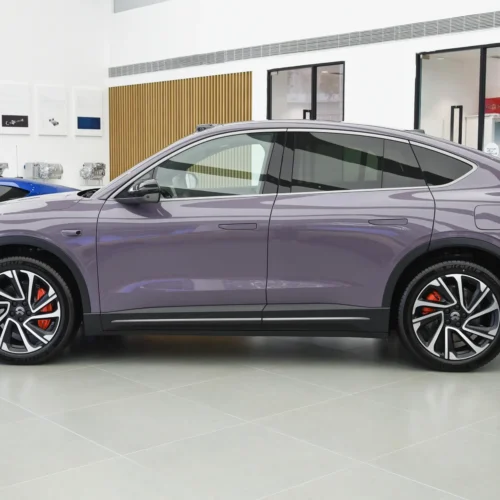

Body

Length[mm] 4849 4849 4849 4849
Width[mm] 1995 1995 1995 1995
Height[mm] 1697 1697 1697 1697
Wheelbase [mm] 2915 2915 2915 2915
Front wheelbase [mm] 1711 1711 1711 1711
Rear wheelbase [mm] 1711 1711 1711 1711
Minimum ground clearance without load [mm]
Minimum turning radius[m]
Number of doors 5 5 5 5
number of seats 5 5 5 5
Approach angle [°] 17 17 17 17
Departure angle[°] 19 19 19 19
Passage angle [°]
Minimum ground clearance with full load [mm]
Drag coefficient [Cd] 0.24 0.24 0.24 0.24
Car door opening method swing door swing door swing door swing door
Front trunk volume [L]
Trunk volume [L] 505-1402 505-1402 505-1402 505-1402
Curb weight [kg] 2340 2292 2340 2292
Full load mass [kg] 2826 2826 2826 2826

engine

electric motor

Motor brand NIO NIO
Motor model YS150S001/TZ210S001 YS150S001/TZ210S001
Number of drive motors Dual motor Dual motor Dual motor Dual motor
Motor layout Front + rear Front + rear Front + rear Front + rear
Motor type Front AC asynchronous/rear permanent magnet synchronous Front AC asynchronous/rear permanent magnet synchronous Front AC asynchronous/rear permanent magnet synchronous Front AC asynchronous/rear permanent magnet synchronous
Total motor power [kW] 360 360 360 360
Total motor horsepower [Ps] 490 490 490 490
Motor total torque [N·m] 700 700 700 700
Maximum power of front electric motor [kW] 150 150 150 150
Maximum torque of front electric motor [N·m] 280 280 280 280
Maximum power of rear electric motor [kW] 210 210 210 210
Maximum torque of rear electric motor [N·m] 420 420 420 420

Battery

Battery Type Ternary lithium battery Ternary lithium + lithium iron phosphate Ternary lithium battery Ternary lithium + lithium iron phosphate
Battery brand Jiangsu Times/CATL/China New Aviation Jiangsu Times Jiangsu Times/CATL/China New Aviation Jiangsu Times
Battery temperature management ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling
Battery power [kWh] 100 75 100 75
Battery energy density [Wh/kg] 185.4 142.1 185.4 142.1
Electricity consumption per 100 kilometers [kWh/100km]
vehicle charging port ●Quick charging port ●Quick charging port ●Quick charging port ●Quick charging port
Slow charging port location
Fast charging port location ●Car left rear side ●Car left rear side ●Car left rear side ●Car left rear side
High voltage fast charging platform ●400V platform ●400V platform
Fast charging power [kW]
Fast charging time[min] 36 30
Fast charging time[h] 0.6 0.5
Fast charging capacity [%]
Slow charging power [kW]
Slow charging time[h]
Slow charging capacity[%]
Vehicle battery swap
Home charging pile
Car charging gun
External discharge function
External discharge power ●3.3kW ●3.3kW ●3.3kW ●3.3kW
Battery pack warranty 8 years or 120,000 kilometers 8 years or 120,000 kilometers 8 years or 120,000 kilometers 8 years or 120,000 kilometers
First owner battery pack warranty 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy) 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy) 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy) 10 years with no mileage limit (the liability exemption clause shall be subject to the official policy)

gearbox

Gearbox type Fixed gear ratio Fixed gear ratio Fixed gear ratio Fixed gear ratio
Gearbox description Electric vehicle single speed gearbox Electric vehicle single speed gearbox Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Number of gears 1 1 1 1

chassis steering

Drive form Dual motor four-wheel drive Dual motor four-wheel drive Dual motor four-wheel drive Dual motor four-wheel drive
four-wheel drive Electric four-wheel drive Electric four-wheel drive Electric four-wheel drive Electric four-wheel drive
Center differential structure
Front suspension type Five-link independent suspension Five-link independent suspension Five-link independent suspension Five-link independent suspension
rear suspension type Five-link independent suspension Five-link independent suspension Five-link independent suspension Five-link independent suspension
Assist type electric assist electric assist electric assist electric assist
Adjustable suspension features ●Soft and hard adjustment ●Soft and hard adjustment ●Soft and hard adjustment ●Soft and hard adjustment
Adjustable suspension types
Body structure Load-bearing Load-bearing Load-bearing Load-bearing
limited slip differential
differential lock
Maximum wading depth[mm]

wheel brake

Front brake type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type
rear brake type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type
Parking brake type Electronic parking Electronic parking Electronic parking Electronic parking
Front tire specifications ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21
Rear tire specifications ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21 ●255/50 R20○265/45 R21
Spare tire ●Tire repair tools only ●Tire repair tools only ●Tire repair tools only ●Tire repair tools only
Spare tire placement

active safety

ABS anti-lock
Braking force distribution (EBD/CBC, etc.)
Brake assist (BA/EBA/BAS, etc.)
Traction control (ASR/TCS/TRC, etc.)
Body stability control (ESP/DSC/VSC, etc.)
Tire pressure monitoring ●Tire pressure display ●Tire pressure display ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●The whole car ●The whole car ●The whole car ●The whole car
In-car biometric monitoring

passive safety

Main driver airbag
Passenger airbag
First row side airbag
Second row side airbags
side curtain airbags
knee air bag
Passenger seat cushion airbag
Rear seat belt airbag
Rear seat anti-skid airbags
center airbag ●First row ●First row ●First row ●First row
Second row forward airbags
child seat interface
passive pedestrian protection
Run-flat tires

Auxiliary/control configuration

front parking radar
Rear parking radar
Reverse side warning system
Door opening collision warning
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image
Chassis perspective
cruise system ●Full-speed adaptive cruise ●Full-speed adaptive cruise ●Full-speed adaptive cruise ●Full-speed adaptive cruise
Driving mode selection ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customized/personalized
Fatigue reminder
automatic parking
remote control parking
remote summoning
automatic parking
Hill assist
steep descent
night vision system
variable steering ratio
Integral active steering system
Wading sensor system
low speed four wheel drive
creep mode
tank turns

Assisted driving functions

Anti-rollover system
Parallel assistance (BSM/BSD)
Lane Departure Warning (LDWS)
Lane Keeping (LKAS)
Lane centering
Road traffic sign recognition
forward collision warning
rear collision warning
Active braking
Automatic lane change assist
Automatic ramp exit/entry
Reverse tracking
High-speed assisted driving
Urban assisted driving

Assisted driving hardware

Driving assistance level ●L2 ●L2 ●L2 ●L2
Assisted driving system ●NIO Autonomous Driving NIO Autonomous Driving ●NIO Autonomous Driving NIO Autonomous Driving ●NIO Autonomous Driving NIO Autonomous Driving ●NIO Autonomous Driving NIO Autonomous Driving
Assisted driving chip ●4 NVIDIA Drive Orin-X ●4 NVIDIA Drive Orin-X ●4 NVIDIA Orin-X ●4 NVIDIA Orin-X
Chip computing power ●1016 TOPS ●1016 TOPS ●1016 TOPS ●1016 TOPS
Environment aware camera ●7 pieces ●7 pieces ●7 pieces ●7 pieces
Environment sensing camera pixels [10,000] ●800 ●800
Front sensing camera type ●Two eyes ●Two eyes ●Two eyes ●Two eyes
Front sensing camera pixels [10,000] ●800 ●800
surround camera ●4 pieces ●4 pieces ●4 pieces ●4 pieces
Surround camera pixels [10,000] ●300 ●300
car camera ●2 pieces ●2 pieces ●2 pieces ●2 pieces
ultrasonic radar ●First 6/Last 6 ●First 6/Last 6 ●First 6/Last 6 ●First 6/Last 6
millimeter wave radar ●5 pieces ●5 pieces ●5 pieces ●5 pieces
lidar ●1 piece ●1 piece ●1 piece ●1 piece

external placement

Skylight type ●The panoramic sunroof cannot be opened ●The panoramic sunroof cannot be opened ●The panoramic sunroof cannot be opened ●The panoramic sunroof cannot be opened
Light-sensing awning
Sport appearance package
Electric spoiler
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Electric suction door ●The whole car ●The whole car ●The whole car ●The whole car
Automatic opening and closing of car doors
Frameless door
sliding door
roof rack
Key type ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key ●Remote key ●Bluetooth key ●NFC/RFID key ●UWB digital key
Keyless start
keyless entry ●The whole car ●The whole car ●The whole car ●The whole car
Hidden electric door handle
Active closing air intake grille
Electric tailgate ●Electric tailgate ●Tailgate position memory ●Induction tailgate ●Electric tailgate ●Tailgate position memory ●Induction tailgate
Tailgate position memory
Induction tailgate
Tailgate glass opens independently
car side pedals
Low speed driving warning sound
Sentinel (clairvoyance) mode
tow hook
Trailer power outlet
Induction tailgate

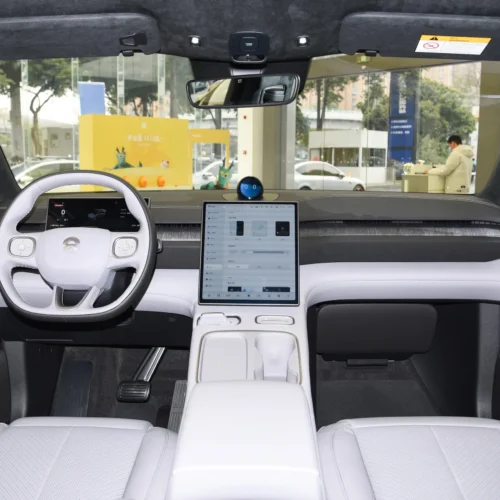

Internal configuration

Steering wheel material ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather
Multifunction steering wheel
Shift pattern Electronic gear shift Electronic gear shift Electronic gear shift Electronic gear shift
steering wheel adjustment ●Electric up and down + front and rear adjustment ●Steering wheel memory ●Electric up and down + front and rear adjustment ●Steering wheel memory ●Electric up and down + front and rear adjustment ●Steering wheel memory ●Electric up and down + front and rear adjustment ●Steering wheel memory
Steering wheel heating
Trip computer display ●Color ●Color ●Color ●Color
Full LCD instrument panel
Instrument screen size ●10.2 ●10.2 ●10.2 ●10.2
Instrument screen material ●MINI LED ●MINI LED
Instrument screen resolution [px] ●1920 x 532 ●1920 x 532
Instrument screen pixel density [PPI] ●196 ●196
HUD heads up display
Built-in driving recorder
Mobile phone wireless charging ●First row ●First row ●First row ●First row
Maximum wireless charging power of mobile phones [W] ●40 ●40
steering wheel gear shift
ETC device
Active noise reduction
Single pedal mode
Electrically adjustable pedals

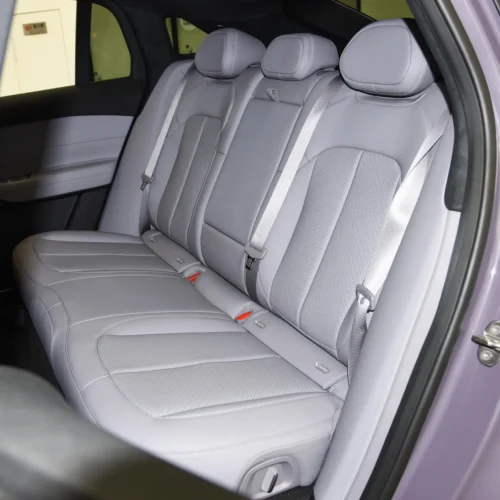

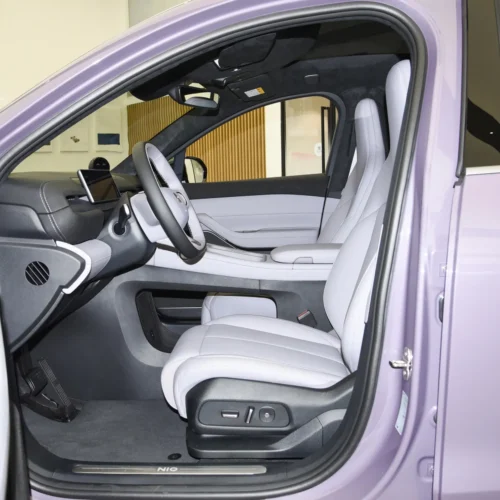

Seat configuration

seat material ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather ●Imitation leather○Genuine leather
Sports style seats
Electric driver’s seat adjustment ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory
Passenger seat electric adjustment ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory ●Electric adjustment with memory
Driver’s seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment
Passenger seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment ●Front and back adjustment ●Backrest adjustment ●Height adjustment (4-way) ●Waist adjustment (4-way) ●Leg rest adjustment
First row seat functions ●Heating ●Ventilation ●Massage ●Heating ●Ventilation ●Massage ●Heating ●Ventilation ●Massage ●Heating ●Ventilation ●Massage
Boss button
Electrically adjustable second row seats ●Electric adjustment ●Electric adjustment ●Electric adjustment ●Electric adjustment
Second row seat adjustment method ●Backrest adjustment ●Backrest adjustment ●Backrest adjustment ●Backrest adjustment
Second row seat functions ●Heating○Ventilation○Massage ●Heating○Ventilation○Massage ●Heating○Ventilation○Massage ●Heating○Ventilation○Massage
Electrically adjustable third row seats
Third row seat adjustment method
Third row seat functions
Electric footrest
Zero Gravity Seat Function ●Co-pilot ●Co-pilot ●Co-pilot ●Co-pilot
center armrest ●First row ●Second row ●First row ●Second row ●First row ●Second row ●First row ●Second row
Seat layout ●2+3 ●2+3 ●2+3 ●2+3
Rear seat folding method ●Inverted proportions ●Inverted proportions ●Inverted proportions ●Inverted proportions
Rear cup holder ●Second row ●Second row ●Second row ●Second row
Electrically reclining rear seats
Rear folding table
Heated/cooled cup holder

Multimedia configuration

Central control color screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●12.8 ●12.8 ●12.8 ●12.8
Screen size under central control
Central control screen material ●AMOLED ●AMOLED
Central control screen resolution [px] ●1728 x 1888 ●1728 x 1888
Central control screen pixel density [PPI] ●200 ●200
Passenger screen
Passenger screen size
Vehicle system Banyan tree Banyan tree Banyan tree Banyan tree
Passenger screen material
Passenger screen pixel density [PPI]
Car chip Qualcomm Snapdragon 8295 Qualcomm Snapdragon 8295 Qualcomm Snapdragon 8155 Qualcomm Snapdragon 8155
Vehicle system memory (GB) ●16 ●16
Vehicle system storage (GB) ●256 ●256
satellite navigation system
Navigation traffic information display
AR real-life navigation
Car navigation map ●Gaode ●Gaode
HD map
V2X communication
roadside assistance call
Vehicle-to-machine network ●5G ●5G ●5G ●5G
Car WiFi function ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot
OTA upgrade ●Vehicle OTA ●Vehicle OTA ●Vehicle OTA ●Vehicle OTA
Car APP application market
Voice recognition control function ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Multimedia system ●Navigation ●Telephone ●Air conditioning
Voice zone wake-up ●First row ●Second row ●First row ●Second row ●First row ●Second row ●First row ●Second row
Voice wake-up-free
Speech continuous recognition
Mobile phone interconnection/mapping
Voice assistant wake word ●嗨,NOMI ●嗨,NOMI ●嗨,NOMI ●嗨,NOMI
gesture control
face recognition
Remote control function ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Steering wheel heating ●Seat heating ●Seat ventilation ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/finding ●Schedule maintenance/repair ●Car owner service (find charging pile , gas stations, parking lots, etc.) ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Steering wheel heating ●Seat heating ●Seat ventilation ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/finding ●Schedule maintenance/repair ●Car owner service (find charging pile , gas stations, parking lots, etc.) ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Steering wheel heating ●Seat heating ●Seat ventilation ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/finding ●Schedule maintenance/repair ●Car owner service (find charging pile , gas stations, parking lots, etc.) ●Door control ●Window control ●Vehicle start ●Air conditioning control ●Steering wheel heating ●Seat heating ●Seat ventilation ●Charging management ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/finding ●Schedule maintenance/repair ●Car owner service (find charging pile , gas stations, parking lots, etc.)
Car CD/DVD
Split screen function
Multimedia/charging interface ●USB●Type-C ●USB●Type-C ●USB●Type-C ●USB●Type-C
Bluetooth/car phone
Number of USB/Type-C interfaces ●3 in the front row/1 in the back row ●3 in the front row/1 in the back row ●3 in the front row/1 in the back row ●3 in the front row/1 in the back row
In-car entertainment functions ●Korean songs ●Games ●Korean songs ●Games ●Korean songs ●Games ●Korean songs ●Games
simulated sound
Rear seat control multimedia
audio brand
Luggage compartment power interface ●12V ●12V ●12V ●12V
Number of speakers ●23 ●23 ●23 ●23
Rear multimedia screen ●1 ●1 ●1 ●1
Cockpit 220V/230V power supply

Lighting configuration

Low beam light source ●LED ●LED ●LED ●LED
high beam light source ●LED ●LED ●LED ●LED
Lighting features ●Geometric multi-beam ●Geometric multi-beam ●Geometric multi-beam ●Geometric multi-beam
LED daytime running lights
Headlight function ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown ●Height adjustment ●Automatic opening and closing ●Adaptive high and low beams ●Delayed shutdown
Turn assist light
Front fog lights ●LED ●LED ●LED ●LED
Headlight cleaning device
Car interior ambient light ●256 colors ●256 colors ●256 colors ●256 colors
Rear multimedia screen size ●6.6 ●6.6
Rear multimedia screen material ●MINI LED ●MINI LED
Rear multimedia screen resolution [px] ●1268 x 360 ●1268 x 360
Rear multimedia screen pixel density [PPI] ●199 ●199

glass/rear view mirror

First row electric windows
Second row power windows
One-click lifting and lowering of windows ●The whole car ●The whole car ●The whole car ●The whole car
Window anti-pinch function ●The whole car ●The whole car ●The whole car ●The whole car
Multilayer soundproof glass ●The whole car ●The whole car ●The whole car ●The whole car
Exterior rearview mirror function ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle ●Electric adjustment ●Heated rearview mirrors ●Electric folding ●Mirror memory ●Automatic flip-down when reversing ●Automatic folding when locking the car ●Automatic anti-dazzle
Interior rearview mirror function ●Automatic anti-dazzle ●Automatic anti-dazzle ●Automatic anti-dazzle ●Automatic anti-dazzle
Rear side privacy glass
Rear side sunshades
Rear windshield sunshade
Car vanity mirror ●Main driver + lighting ●Co-pilot + lighting ●Main driver + lighting ●Co-pilot + lighting ●Main driver + lighting ●Co-pilot + lighting ●Main driver + lighting ●Co-pilot + lighting
Sensing wiper function ●Rain sensor type ●Rain sensor type ●Rain sensor type ●Rain sensor type
rear wiper
Heated water nozzle

Air conditioning/refrigeration

First row air conditioner ●Dual temperature zone automatic air conditioning ●Dual temperature zone automatic air conditioning ●Dual temperature zone automatic air conditioning ●Dual temperature zone automatic air conditioning
Second row air conditioner ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning
Third row air conditioner
heat pump air conditioner
air quality monitoring
In-car PM2.5 filter device
Car air purifier
negative ion generator
Fragrance system
car refrigerator
brand

Nio

body type

suv

fuel type

EV

body type level

middle

sales-volumn-monthly

1209

Video

滚动至顶部
