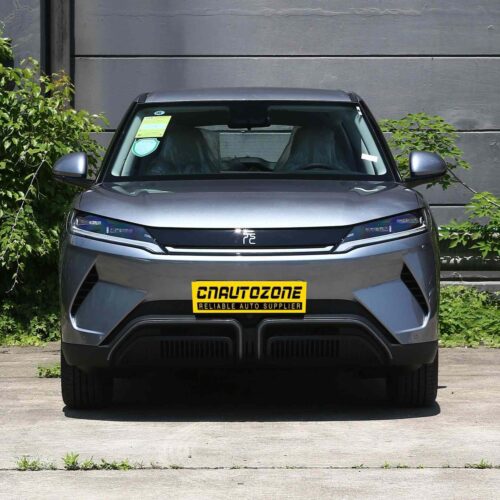

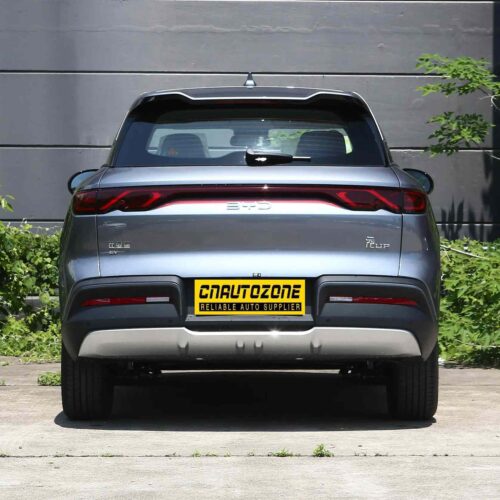

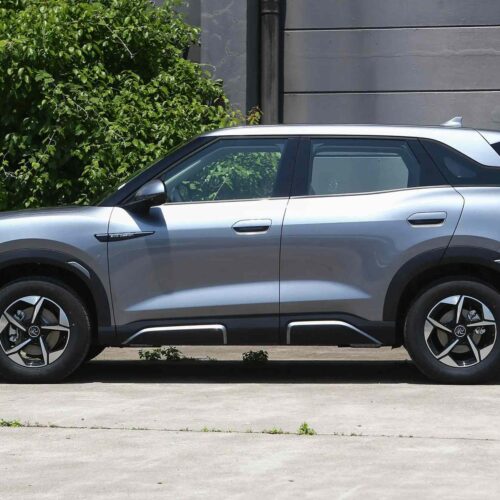

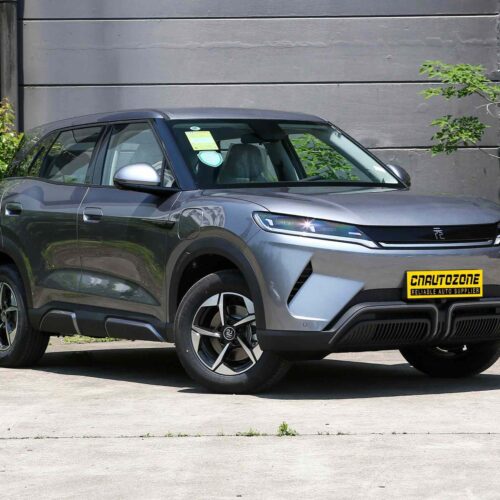

byd yuan up

$ 14,500$ 17,500

2024 401km transcendent model
2024 model 401km leading model
2024 model 301km leading model

Basic parameters

Manufacturer BYD·New Energy BYD·New Energy BYD·New Energy
time to market 2024-03-26 2024-03-26 2024-03-26
level small SUV small SUV small SUV
Body structure 5-door, 5-seater SUV 5-door, 5-seater SUV 5-door, 5-seater SUV
Energy type pure electricity pure electricity pure electricity
Motor[Ps] 177 177 95
gearbox 1st gear fixed gear ratio 1st gear fixed gear ratio 1st gear fixed gear ratio
Length*width*height[mm] 4310*1830*1675 4310*1830*1675 4310*1830*1675
CLTC pure electric range [km] 401 401 301
WLTC pure electric range [km]
NEDC pure electric range [km]
Official 0-50km/h acceleration [s]
Official 0-100km/h acceleration [s] 7.9 7.9 12
Maximum speed [km/h] 160 160 150
Vehicle warranty 6 years or 150,000 kilometers 6 years or 150,000 kilometers 6 years or 150,000 kilometers
First owner warranty policy
Exterior color
interior color

body

Length[mm] 4310 4310 4310
Width[mm] 1830 1830 1830
Height[mm] 1675 1675 1675
Wheelbase [mm] 2620 2620 2620
Front wheelbase [mm] 1570 1570 1570
Rear wheelbase [mm] 1570 1570 1570
Minimum ground clearance without load [mm]
Minimum turning radius [m]
Number of doors 5 5 5
number of seats 5 5 5
Approach angle [°] 18 18 18
Departure angle [°] 23 23 23
Passage angle [°]
Minimum ground clearance with full load [mm]
Drag coefficient [Cd]
Car door opening method swing door swing door swing door
Front trunk volume [L]
Trunk volume [L]
Curb weight [kg] 1540 1540 1430
Full load mass [kg] 1915 1915 1805

engine

electric motor

Motor brand BYD BYD BYD
Motor model TZ200XSW TZ200XSW TZ180XSF
Number of drive motors single motor single motor single motor
Motor layout prefix prefix prefix
Motor type Permanent magnet synchronization Permanent magnet synchronization Permanent magnet synchronization
Total motor power [kW] 130 130 70
Total motor horsepower [Ps] 177 177 95
Motor total torque [N·m] 290 290 180
Maximum power of front electric motor [kW] 130 130 70
Maximum torque of front electric motor [N·m] 290 290 180
Maximum power of rear electric motor [kW]
Maximum torque of rear electric motor [N·m]

Battery

Battery Type Lithium iron phosphate battery Lithium iron phosphate battery Lithium iron phosphate battery
Battery brand Ferdy Ferdy Ferdy
Battery temperature management ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling ●Low temperature heating ●Liquid cooling
Battery power [kWh] 45.12 45.12 32
Battery energy density [Wh/kg]
Electricity consumption per 100 kilometers [kWh/100km] 12.2 12.2
vehicle charging port ●Slow charging port ●Fast charging port ●Slow charging port ●Fast charging port ●Slow charging port ●Fast charging port
Slow charging port location ●Car right front side ●Car right front side ●Car right front side
Fast charging port location ●Car right front side ●Car right front side ●Car right front side
High voltage fast charging platform ●400V platform ●400V platform ●400V platform
Fast charging power [kW] 65 65 45
Fast charging time[min] 30 30 30
Fast charging time[h] 0.5 0.5 0.5
Fast charging capacity [%] 30-80 30-80 30-80
Slow charging power [kW]
Slow charging time[h]
Slow charging capacity[%]
Vehicle battery swap
Home charging pile
Car charging gun
External discharge function
External discharge power ●3.3kW ●3.3kW ●3.3kW
Battery pack warranty 8 years or 150,000 kilometers 8 years or 150,000 kilometers 8 years or 150,000 kilometers
First owner battery pack warranty Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official) Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official) Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official)

gearbox

Gearbox type Fixed gear ratio Fixed gear ratio Fixed gear ratio
Gearbox description Electric vehicle single speed gearbox Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Number of gears 1 1 1

chassis steering

Drive form Front wheel drive Front wheel drive Front wheel drive
four-wheel drive
Center differential structure
Front suspension type MacPherson independent suspension MacPherson independent suspension MacPherson independent suspension
rear suspension type torsion beam non-independent suspension torsion beam non-independent suspension torsion beam non-independent suspension
Assist type electric assist electric assist electric assist
Adjustable suspension features
Adjustable suspension types
Body structure Load-bearing Load-bearing Load-bearing
limited slip differential
differential lock
Maximum wading depth[mm]

wheel brake

Front brake type ●Ventilated disc type ●Ventilated disc type ●Ventilated disc type
rear brake type ●Solid disc type ●Solid disc type ●Solid disc type
Parking brake type Electronic parking Electronic parking Electronic parking
Front tire specifications ●215/65 R16○215/60 R17 ●215/65 R16 ●215/65 R16
Rear tire specifications ●215/65 R16○215/60 R17 ●215/65 R16 ●215/65 R16
Spare tire ●Tire repair tools only ●Tire repair tools only ●Tire repair tools only
Spare tire placement

active safety

ABS anti-lock
Braking force distribution (EBD/CBC, etc.)
Brake assist (BA/EBA/BAS, etc.)
Traction control (ASR/TCS/TRC, etc.)
Body stability control (ESP/DSC/VSC, etc.)
Tire pressure monitoring ●Tire pressure display ●Tire pressure alarm ●Tire pressure alarm
Seat belt not fastened reminder ●First row○All cars ●First row ●First row
In-car biometric monitoring

passive safety

Main driver airbag
Passenger airbag
First row side airbag
Second row side airbags
side curtain airbags
knee air bag
Passenger seat cushion airbag
Rear seat belt airbag
Rear seat anti-skid airbag
center airbag
Second row forward airbags
child seat interface
passive pedestrian protection
Run-flat tires

Auxiliary/control configuration

front parking radar
Rear parking radar
Reverse side warning system
Door opening collision warning
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image
Chassis perspective
cruise system ●Fixed-speed cruise ○Full-speed adaptive cruise ●Cruise speed ●Cruise speed
Driving mode selection ●Sports ●Economy ●Standard/Comfortable ●Snow ●Sports ●Economy ●Standard/Comfortable ●Snow ●Sports ●Economy ●Standard/Comfortable ●Snow
Fatigue reminder
automatic parking
remote control parking
remote summoning
automatic parking
Hill assist
steep descent
night vision system
variable steering ratio
Integral active steering system
Wading sensor system
low speed four wheel drive
creep mode
tank turns

Assisted driving functions

Anti-rollover system
Parallel assistance (BSM/BSD)
Lane Departure Warning (LDWS)
Lane Keeping (LKAS)
Lane centering
Road traffic sign recognition
forward collision warning
rear collision warning
Active braking
Automatic lane change assist
Automatic ramp exit/entry
Reverse tracking
High-speed assisted driving
Urban assisted driving

Assisted driving hardware

Driving assistance level ○L2
Assisted driving system ○DiPilot
Assisted driving chip
Chip computing power
Environment aware camera -○1 piece
Environment sensing camera pixels [10,000]
Front sensing camera type -○Monocular
Front sensing camera pixels [10,000]
surround camera ●4 pieces ●4 pieces ●4 pieces
Surround camera pixels [10,000]
car camera
ultrasonic radar ●First 2/Last 4 ●First 2/Last 4 ●First 2/Last 4
Millimeter wave radar
lidar

external placement

Skylight type ●The panoramic sunroof cannot be opened
Light-sensing awning
Sport appearance package
Electric spoiler
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Electric suction door
Automatic door opening and closing
Frameless door
sliding door
roof rack
Key type ●Remote key ●Bluetooth key ●NFC/RFID key ●Remote key ●Bluetooth key ●NFC/RFID key ●Remote key ●Bluetooth key ●NFC/RFID key
Keyless start
keyless entry ●Main driver ●Main driver ●Main driver
Hidden electric door handle
Active closing air intake grille
Electric tailgate
Tailgate position memory
Induction tailgate
Tailgate glass opens independently
car side pedals
Low speed driving warning sound
Sentinel (clairvoyance) mode
tow hook
Trailer power outlet
Induction tailgate

Internal configuration

Steering wheel material ●Leather ●Plastic ●Plastic
Multifunction steering wheel
Shift pattern Electronic gear shift Electronic gear shift Electronic gear shift
steering wheel adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment
Steering wheel heating
Trip computer display ●Color ●Color ●Color
Full LCD instrument panel
Instrument screen size ●8.8 ●8.8 ●8.8
Instrument screen material
Instrument screen resolution [px]
Instrument screen pixel density [PPI]
HUD heads up display
Built-in driving recorder
Mobile phone wireless charging ●First row
Maximum wireless charging power of mobile phones [W]
steering wheel gear shift
ETC device
Active noise reduction
Single pedal mode
Electrically adjustable pedals

Seat configuration

seat material ●Leather ●Leather ●Leather
Sports style seats
Electrically adjustable driver’s seat ●Electric adjustment
Passenger seat electric adjustment ●Electric adjustment
Driver’s seat adjustment method ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way) ●Front and back adjustment ●Backrest adjustment ●Height adjustment (2-way)
Passenger seat adjustment method ●Fore and aft adjustment ●Backrest adjustment ●Fore and aft adjustment ●Backrest adjustment ●Fore and aft adjustment ●Backrest adjustment
First row seat functions ○Heating
Boss button
Electrically adjustable second row seats
Second row seat adjustment method
Second row seat functions
Electrically adjustable third row seats
Third row seat adjustment method
Third row seat functions
Electric foot rest
Zero Gravity Seat Function
center armrest ●First row○Second row ●First row ●First row
Seat layout ●2+3 ●2+3 ●2+3
Rear seat folding method ●Inverted proportions ●Inverted proportions ●Inverted proportions
Rear cup holder ○Second row
Electrically reclining rear seats
Rear folding table
Heated/cooled cup holder

Multimedia configuration

Central control color screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●12.8 ●12.8 ●10.1
Screen size under central control
Central control screen material
Central control screen resolution [px]
Central control screen pixel density [PPI]
Passenger screen
Passenger screen size
Vehicle system DiLink DiLink DiLink
Passenger screen material
Passenger screen pixel density [PPI]
Car chip
Vehicle system memory (GB)
Vehicle system storage (GB)
satellite navigation system
Navigation traffic information display
AR real-life navigation
Car navigation map ●Gaode ●Gaode ●Gaode
HD map
V2X communication
roadside assistance call
Vehicle-to-machine network ●4G ●4G ●4G
Car WiFi function ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot ●WiFi connection ●WiFi hotspot
OTA upgrade ●Vehicle OTA ●Vehicle OTA ●Vehicle OTA
Car APP application market
Voice recognition control function ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Multimedia system ●Navigation ●Telephone ●Air conditioning ●Multimedia system ●Navigation ●Telephone ●Air conditioning
Voice zone wake-up ●First row ●First row ●First row
Voice wake-up-free
Speech continuous recognition
Mobile phone interconnection/mapping
Voice assistant wake word ●Hello, Xiaodi ●Hello, Xiaodi ●Hello, Xiaodi
gesture control
face recognition
Remote control function ● Door control ● Car light control ● Vehicle start ● Air conditioning control ● Charging management ● Vehicle condition inquiry/diagnosis ● Vehicle positioning/car search ● Scheduled maintenance/repair ● Car owner service (find charging piles, gas stations, parking lots, etc.) ● Door control ● Car light control ● Vehicle start ● Air conditioning control ● Charging management ● Vehicle condition inquiry/diagnosis ● Vehicle positioning/car search ● Scheduled maintenance/repair ● Car owner service (find charging piles, gas stations, parking lots, etc.) ● Door control ● Car light control ● Vehicle start ● Air conditioning control ● Charging management ● Vehicle condition inquiry/diagnosis ● Vehicle positioning/car search ● Scheduled maintenance/repair ● Car owner service (find charging piles, gas stations, parking lots, etc.)
Car CD/DVD
Split screen function
Multimedia/charging interface ●USB●Type-C●SD ●USB●Type-C●SD ●USB●Type-C●SD
Bluetooth/car phone
Number of USB/Type-C interfaces ●2 in the front row/2 in the back row ●2 in the front row/2 in the back row ●2 in the front row/2 in the back row
In-car entertainment functions ●K song ●K song ●K song
simulated sound
Rear seat control multimedia
audio brand
Luggage compartment power interface
Number of speakers ●6○8 ●6 ●6
Rear multimedia screen
Cockpit 220V/230V power supply

Lighting configuration

Low beam light source ●LED ●LED ●LED
high beam light source ●LED ●LED ●LED
Lighting features
LED daytime running lights
Headlight function ●Height adjustment ●Automatic opening and closing ●Delayed closing○Adaptive high and low beams ●Height adjustment ●Automatic opening and closing ●Delayed closing ●Height adjustment ●Automatic opening and closing ●Delayed closing
Turn assist light
Front fog lights
Headlight cleaning device
Car interior ambient light ●Single color
Rear multimedia screen size
Rear multimedia screen material
Rear multimedia screen resolution [px]
Rear multimedia screen pixel density [PPI]

glass/rear view mirror

First row electric windows
Second row power windows
One-click lifting and lowering of windows ●The whole car ●Driving position ●Driving position
Window anti-pinch function ●The whole car ●Driving position ●Driving position
Multilayer soundproof glass
Exterior rearview mirror function ●Electric adjustment ●Heated rearview mirror ●Electric folding ●Automatic folding when the car is locked ●Electric adjustment ●Heated rearview mirrors ●Electric adjustment ●Heated rearview mirrors
Interior rearview mirror function ●Manual anti-dazzle ●Manual anti-dazzle ●Manual anti-dazzle
Rear side privacy glass
Rear side sunshades
Rear windshield sunshade
Car vanity mirror ●Main driver + lighting ●Co-pilot + lighting ●Main driver ●Co-pilot ●Main driver ●Co-pilot
Sensing wiper function
rear wiper
Heated water nozzle

Air conditioning/refrigeration

First row air conditioner ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning ●Single temperature zone automatic air conditioning
Second row air conditioner
Third row air conditioner
heat pump air conditioner
air quality monitoring
In-car PM2.5 filter device
Car air purifier
negative ion generator
Fragrance system
car refrigerator
brand

BYD

body type

suv

body type level

small

fuel type

EV

video

滚动至顶部
